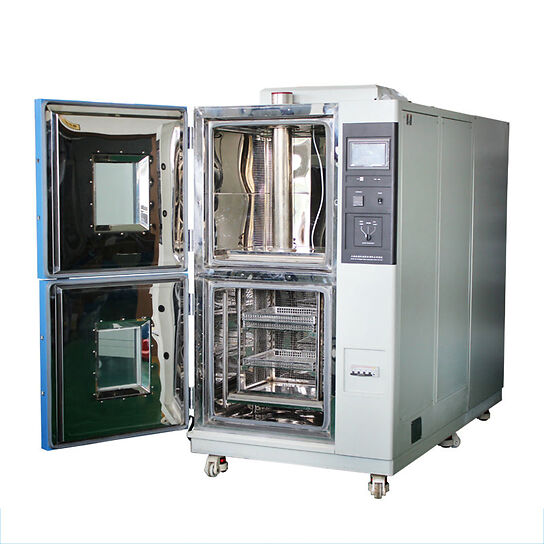

HCTS-230JTUS3 The HCTS Series of FAST RAMP RATE THERMAL SHOCK CHAMBERS

Consists of a single cabinet for subjecting test specimens to high and Low temperature extremes and changes at fast rates.

These chambers are used for applications requiring Fast Ramp Rates Thermal Shock and Temperature Cycling.

Do not require LN2, CO2 or expensive refrigerants utilizing the Air-to-Air method for providing Fast Ramp Up and Ramp Down Rates. Does not require elevators for moving the test specimens. These chambers with small footprints come in several interior sizes from the very small interiors of 50L (1.7 cu ft), 72L (2.5 cu ft) to the large interiors of 230L (8 cu ft), 760L (26 cu ft) .

These chambers are controlled with powerful UMC 1300 series of Programmable Temperature. Controllers with USB/Ethernet capabilities and several options.

Unlike the competition, the customer can realize great cost savings due to the elimination of liquid nitrogen, compressed air or other gaseous materials. Low water usage and reduced cooling water requirements as well as lower wattage of power requirements, small foot prints, less lab space classifies these chambers under the �Green and Clean� Technology Environment

• UMC 1300 Series of powerful controllers
• Capability of controlling product temperature
• Stainless Steel PT100 type sensors
• Water-cooled compressors
• Independent High and Low limit protection
• Access ports
• Shielded Electric heaters
• High Density Polyurethane Insulation or other options
• Two sets of stainless steel adjustable shelves
• Heavy duty lockable casters
• Powerful Cascading Compressors
• Water-cooled Carapace condenser
• Auto adjust evaporator
• Programmable controller
• USB/Ethernet or RS232/RS485 Communications
• Safety controls via solid state relays and switches
• Non-corrosive silicone type sealing
• Well sealed door comprising of dual gaskets
• Usage of high efficiency of heating & cooling technology
• Prevention of condensation or frost during low temperature testing
• Options include variable speed fans
• Two or three-zone damper control system
